Feeling tired and bored by busy and heavy loads of you shop？Why not choose yourself shop winch to free your hand and enjoy the happiness of modern lifting device?
Shop winch is a special designed winch machine to meet the need of modern shops. Our shop machine winch has rated capacity from 0.5 ton to 10 tons, which is able to meet your daily lifting and pulling needs. Because of shop has restricted space and room, we make our shop winch machine more compact and scientific in structure. In this way, you can save your space and money in space cost.
Features of our shop winches
You can choose your shop winch between AQ-JK shop winch and AQ-JKD shop winch. Both of the two types of winch machine will contribute to your lifting and drag needs. Rate capacity of AQ-JK shop winch is from o.t ton to 19 tons, and for AQ-JKD type shop winch, rated capacity is from 0.75 ton to 2 tons. You can choose AQ-JK shop winch if you want more heavy loads. However, if not AQ-JKD type winch will be your best choice.
AQ-JKD Shop Winch
Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;

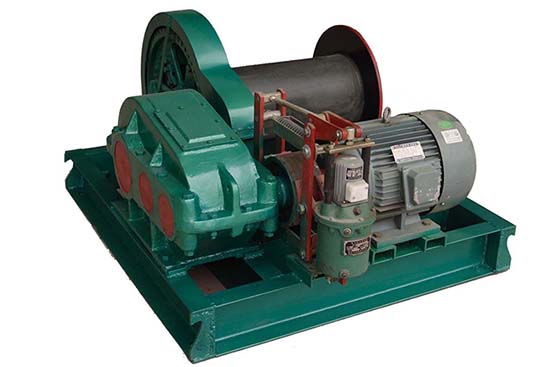

AQ-JK Shop Winch
Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
Why choose our company?
Our company is always place custom need in the first position. What customers need is our pursuit. Next is the advantages of our company in detail.
1. If you have any requirement, we provide you non-standard customization. For example, our standard steel is Q235B type, if you want to Q345B type steel, we will provide you according to you needs.
2. Winch mount is large and stable, which can ensure the stable of winch machine during your operation.
3. Excellent and perfect welding technology. The welding line is narrow which makes lower noise when operate winch machine.
4. We adopts China’s and French’s famous brand as our accessories suppliers.
5. All accessories have inventory, you will not wait too long before get your shop winch.
| Technical Parameter of AQ-JK series Shop Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKD Series Shop Winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JKD1.60 | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JKD2.0 | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
Welcome to get your free inquiry. We will reply to you in 12 hours!
