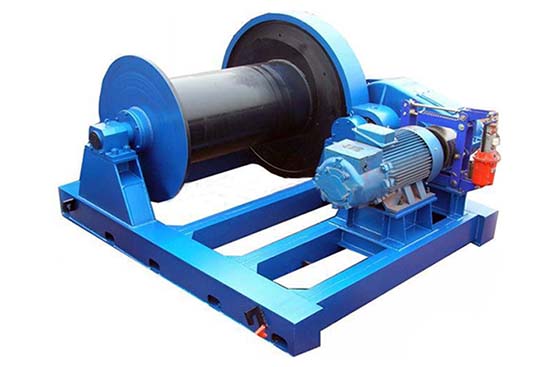

Lifting winch is the basic lifting and pulling device that used in construction site. According to the power system, our lifting winch can be divided into three types: electricity lifting winch, hydraulic winch and manual power lifting winch. Manual winch in our group mainly is capstan that used in ship and deck.
Lifting winch has many series, and each one has its advantage and suitable occasions. Next is the brief introduction that helps you having a better understanding of our winch machine, under the help of the guidance, you will find the winch that suits your factory well.
Applications of Lifting Winch
The versatility of winches allow them to be used in a multitude of applications, including setting up rigs,pulling pipe, moving industrial, positioning objects on mast towers, raising telecommuncation tower, moving materials for wind tower turbines and a hoist of other users.
Features of Reliable Lifting Winch
Lifting winches include six different types. You can choose what you want according to your needs. Here are the brief introduction.
AQ-JM Lifting Winch
Loading capacity: 0.5~200 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
Firstly, we introduce you AQ-JM lifting winch. If you want to choose a two-in –one winch machine, AQ-JM type lifting winch is your best choice. Since this lifting winch can be used not only in lands, but also used in ships and deck. When it is placed in lands, it can lift, pull and drag heavy loads as the other winches. While it is set in ships or deck, it usually play the role to anchor and moor.
AQ-JK Lifting Winch
Loading capacity: 0.5~60 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
Then, when talks to AQ-JK lifting winch, it is fast that AQ-JM type lifting winch. But fast speed means less capacity. It can be used as the main hoister in derrick, portable frame and lifting trolley. If you want to match your lifting winch with derrick and trolley, why not choose AQ-JK winch machine.
AQ-JKL Lifting Winch
Loading capacity: 1~10t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
Thirdly, AQ-JKL lifting winch is used in wharf, port and construction site to do vertical lifting task. It has a unique character that other winch have not, it can do free falling pile task in construction site. If you want a piling winch machine, click inquiry to contact us.
AQ-JKD Lifting Winch
Loading capacity: 0.75-2 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JKD series lifting winch is widely used in construction site, port, bridge building project and metallurgy to do lift and installation work. It adopts to planetary transmission, which makes a compact structure of lifting winch. And all the winch machine confirms to safety requirement of China.
AQ-JMM Lifting Winch
Loading capacity: 0.5~100t;
Wire rope capacity: 20~5000 m;
Working speed: 5~20 m/min;
Power supply:
220-690V,50/60HZ,3Phase
For AQ-JMM winch machine, it is designed for large and super large project. This type of lifting win has stable tension force, and the longest winch rope capacity makes the speed of winch rope constant.
Lastly for mine lifting winch. This winch is designed for kinds of mine. You can use it in metal mine, coal mine and zinc mine. When you order a mine lifting winch, please let us know whether you use it in or outside your mine.
Why Choose AIMIX Manufacturer?
AIMIX is professional. We have been in winch area for years, and as the leading force of China’s winch business, we can handle all the problems that you may meet in your purchasing and after sale process. Our winch machine is of high quality with cheap price, you will get a quiet good cost performance if you choose us. Interested in our lifting winch, why not click the inquiry to get yourself one?
| Technical Parameter of AQ-JM Series Lifting Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameter of AQ-JK series Lifting Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKL series Lifting Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370x1650x1210 | 1200 |
| AQ-JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690x1740x1200 | 1800 |
| AQ-JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300x2100x1650 | 3000 |
| AQ-JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350x2100x1650 | 3200 |
| AQ-JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440x2500x1800 | 5500 |
| AQ-JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590x2540x1800 | 5800 |
| Technical Parameter of AQ-JKD Series Lifting Winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JKD1.60 | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JKD2.0 | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
| Technical Parameter of AQ-JMM Series Lifting Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JMM10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 30 | 1980x2650x850 | 6000 |
| AQ-JMM16 | 160 | 11 | 1000 | 34.5 | YZR225M-6 | 45 | 3350x1920x1320 | 9500 |
| AQ-JMM20 | 200 | 11 | 3600 | 39 | YZR280S-6 | 55 | 3500x1960x1320 | 10000 |
| AQ-JMM32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 75 | 4330x2350x1760 | 16000 |
| AQ-JMM55 | 550 | 5 | 2000 | 60 | YZR280M-6 | 75 | 5000x2800x1900 | 22000 |
