Winch is a kind of traditional lifting, pulling and dragging device to transport heavy loads in vertical and horizontal movement. Our winch machine gives you best quality and cheap price. For 4 tons winch, you can choose among AQ-JM model 4 tons winch, AQ-JK model 4 tons winch and AQ-JKL model 4 ton winch. Our 4 tons winch is of high quality, you will not regret if you choose us.
Features of our 4 tons winches
Except basic lifting and pulling function, each types of 4 tons winches of our group has its own features, you can choose what you really need according to their unique character. Firstly, we will introduce you AQ-JM type winch. AQ-JM type 4 tons winch is high demanded in construction site and installer. The reason why it is do popular is that it has two functions benefits buyers a lot. For one thing, it can be used in construction site to carry loads in any direction. And for the other side, it can play an anchoring or mooring role as a ship winch in ships and coast. If you buy a AQ-JM 4 tons winch, it means you will get a double function winch. Of course, it saves your money and space to get one more winch. Then, AQ-JK 4 tons winch can act as a hoist matching with derrick and portable frame, if you want match your winch with derrick and frame, why not choose yourself one. Lastly, if you want your winch do piling tasks in construction site, AQ-JKL 4 tons winch machine is quite suitable for you.

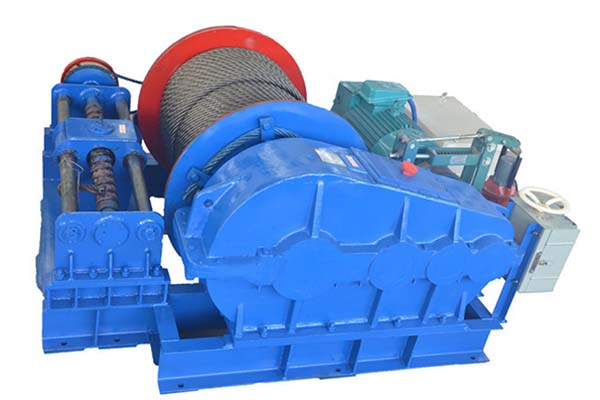

AQ-JM 4 Tons Winch
Loading capacity: 4 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JK 4 Tons Winch
Loading capacity: 4 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min;
(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
Loading capacity: 4 t;
Wire rope capacity: 20~500 m;
Working speed: 20~36 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
Why choose our group as your supplier?
Except high quality our 4 tons winch and multiple function, we provide you professional service. Our company is the leading winch supplier in China, we have devoted into winch business for years, we promise you that our sell and after sale services will not let you down. Besides, you will get a quite cheap price from our company if you choose us. The reason why our winch is cheap and of high quality is we try our best to improve technology innovation. Choose us, you will get quality, cheap price and best service, why not get your free inquiry right now.
| Technical Parameter of AQ-JM Series 4 Tons Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameter of AQ-JK series 4 Tons Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKL series 4 Tons Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370x1650x1210 | 1200 |
| AQ-JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690x1740x1200 | 1800 |
| AQ-JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300x2100x1650 | 3000 |
| AQ-JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350x2100x1650 | 3200 |
| AQ-JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440x2500x1800 | 5500 |
| AQ-JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590x2540x1800 | 5800 |
Welcome to get your free inquiry. We will reply to you in 12 hours!
