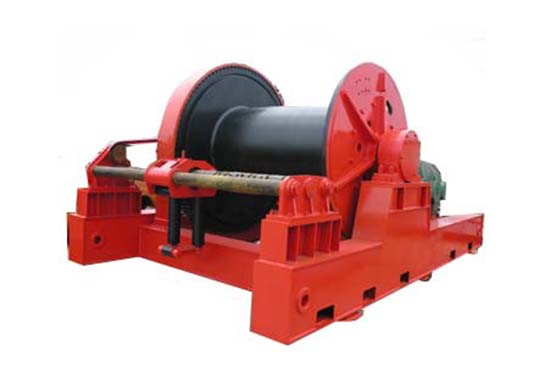

20 tons winch

20 tons winch is winch machine is able to carry rated loads capacity of 20 tons. Like other winch machine, it can do lifting, pulling and dragging task in vertical and horizontal movement. Our company provides you three types of 20 tons winch to let you choose freely. You can choose according to their unique function and your needs. Next is the introduction in detail.

Features of our 20 tons winch

The three types of our winch is AQ-JM 20 tons winch, AQ-JMM 20 tons winch and 20 tons mine winch respectively. All of them can lift and pull heavy loads, but they have some differences in specific function.

Firstly, AQ-JM 20 tons winch. This winch is extremely fit for high accurate transport. For it belongs to slow speed winch, slow speed makes sure the stable of loads. And it is the unique dual purpose winch, it not only can be used in construction site on land, but is able to play an important anchoring and mooring role on ships and coast.

Secondly, you can choose AQ-JMM winch if you aim at transport steel structure for long distance for large and super large construction project. It is stable when does lift task, and the speed of winch rope is constant. All the features makes it used in many occasions including kinds of bridge building project, ports, docks, road engineering, large factories, mines and electric power engineering equipment installation.

Lastly, our company provides you mine winch of 20 tons. Mine winch can be placed in or out you mine like copper mine, coal mine and iron mine. Moreover, if you want your winch to anti-explosion, you can contact us to get your special customized explosive proof mine winch.

Why choose our group?

There are any reasons why you are welcomed to choose our company. Many customers like you choose us for the most important two points: firstly, we are professional. You will not bothered by unprofessional service if you choose us. And for the second, you will get a high quality winch in a economic price. so what are you waiting for, click the free inquiry to get yourself a 20 tons winch.

Technical Parameter of AQ-JM 20 Tons Winch
Model	Rated load	Rated speed	Rope capacity	Rope diameter	Motor type	Motor power	Overall Dimensions	Overall weight
	KN	m/min	m	mm		KW	mm	KG
AQ-JM1	10	15	100	9.3	Y112M-6	3	620x701x417	270
AQ-JM1.6	16	16	150	12.5	Y132M-6	5.5	945x996x570	500
AQ-JM2	20	16	150	13	Y160M-6	7.5	945x996x570	550
AQ-JM3.2	32	9.5	150	15.5	YZR160M-6	7.5	1430x1160x910	1100
AQ-JM3.2B	32	12	195	15.5	YZR160M-6	7.5	1082x1014x610	536
AQ-JM5	50	10	270	21.5	YZR160L-6	11	1235x1230x805	1560
AQ-JM5B	50	9.5	200	21.5	YZR160L-6	11	1620x1260x945	1800
AQ-JM5C	50	9.5	250	21.5	YZR160L-6	11	1235x1230x805	1800
AQ-JM5D	50	15	250	21.5	YZR180L-6	15	1235x1230x805	1850
AQ-JM5E	50	20	250	21.5	YZR200L-6	22	1235x1230x805	2000
AQ-JM6	60	9.5	270	24	YZR180L-6	15	1235x1509x805	1800
AQ-JM8	80	8	250	26	YZR180L-6	15	2090x1475x956	2900
AQ-JM8B	80	9.5	350	26	YZR180L-6	15	1075x1598x985	2650
AQ-JM10	100	8	170	30	YZR200L-6	22	2090x1475x956	3000
AQ-JM10B	100	9.5	250	30	YZR200L-6	22	1705x2200x985	3500
AQ-JM12.5	125	8	300	34	YZR225M-6	30	2880x2200x1550	5000
AQ-JM13.5	135	0-5	290	28	YZR225S-8	22	2990x2363x1650	6500
AQ-JM16	160	10	500	37	YZR250M2-8	37	3750x2400x1850	8800
AQ-JM20	200	10	600	43	YZR280S-8	45	3950x2560x1950	9900
AQ-JM25	225	9	700	48	YZR280M-8	55	4350x2800x2030	13500
AQ-JM32	320	9	700	56	YZR135S-8	75	4500x2850x2100	14800
AQ-JM50	500	9	800	65	YZR315M-8	90	4930x3050x2250	19500
AQ-JM65	650	10.5	3600	64	LA8315-8AB	160	5900x4680x3200	46000

Technical Parameter of AQ-JMM Series 20 Tons Winch
Model	Rated load	Rated speed	Rope capacity	Rope diameter	Motor type	Motor power	Overall Dimensions	Overall weight
	KN	m/min	m	mm		KW	mm	KG
AQ-JMM10	100	10	4800	30	YZR225M-6	30	1980x2650x850	6000
AQ-JMM16	160	11	1000	34.5	YZR225M-6	45	3350x1920x1320	9500
AQ-JMM20	200	11	3600	39	YZR280S-6	55	3500x1960x1320	10000
AQ-JMM32	320	10	3200	52	YZR280M-6	75	4330x2350x1760	16000
AQ-JMM55	550	5	2000	60	YZR280M-6	75	5000x2800x1900	22000

Model	TYPE			Tensile force of wire rope		Wire rope			Overall dimension				The whole weight
	No.	Diameter	Width	Lifting man	Lifting material	Max.diameter	Breaking force	Speed	Legnth		Width	Height
	Pcs	mm		KN		mm	KN	m/s	mm				kg
JTK-0.8×0.6	1	800	600	/	15	14	97.5	1.3	3×2.2×1.3				2100
JTK-1.0×0.6		1000	800		15	12	97.5	1.7	3.4×2.1×1.5				3300
JTP-1.2×1	1	1200	1000	15	21	14	137	2/2.5	5x5x2.75				9562
JTP-1.2×1.2			1200					1.5/1.9	5.2x5x2.75				9585
2JTP-1.2×0.8	2	1200	800	15	21	14	137	2.5/3.0	6.1x5x2.75				11700
2JTP-1.2×1.0			1000					1.5/1.9		6.1x5x2.75				11900
JTP-1.6×1.2	1	1600	1200	31	42	20	279	2/2.5		6.4×5.4×2.9				13538
JTP-1.6×1.5			1500					1.5/1.9		6.7×5.4×2.9				14128
2JTP-1.6×0.9	2	1600	900	31	42	20	279	3.0/4.0		7.1×5.4×2.9				16760
2JTP-1.6×1.2			1200					2/2.5		7.4×5.4×2.9				17370
JK-2×1.5	1	2000	1500	44	60	24	396.5	4.0/5.0		8.15×6.86×2.75				24955
JK-2×1.8			1800					2.5/3.2		8.4×6.86×2.75				25396
2JK-2×1	2	2000	1000	44	61	24	396.5	4.0/7.0		9.48×6.97×2.75				28955
2JK-2×1.25			1250					2.5/3.2		9.73×6.97×2.75				30355
JK-2.5×2	1	2500	2000	69	90	30	621	3.8/4.8		10.26×9.12×3.05				35200
JK-2.5×2.3			2300					3.0/3.4		10.56×9.12×3.05				36040
2JK-2.5×1.2	2	2500	1200	69	83	30	621	8.7/4.9		11.56×9.12×3.05				46325
2JK-2.5×1.5			1500					2.5/4.0		11.86×9.12×3.45				47752
JK-3×2.2	1	2500	2200	100	130	36	900	4.6/5.9		12.4×10.8×2.85				52540
JK-3×2.5			2500					3.0/4.1
JK-3.5×2.5	1	3500	2500	136	170	42	1230	5.4/6.7		14.18×10.65×3.95				73940
JK-3.5×2.8								3.5/4.8
2JK-3×1.5	2	3000	1500	100	135	36	900	5.9/10.0		14.1×10.8×3.45				58750
2JK-3×1.8			1800					3.0/4.7		14.7×10.8×3.45				60250
2JK-3.5×1.7	2	3500	1700	136	170	42	1230	6.7/12.0		15.9×10.65×3.95				77830
2JK-3.5×2.1			2100					3.5/5.3		16.7×10.65×3.95				79630

Welcome to get your free inquiry. We will reply to you in 12 hours!
