1 ton winch is used to lift or pull loads that bearing for 1 ton. Our company provides you four types of 1 ton winch. You can choose what you want according to their models and functions. No matter what types of 1 ton winch machine you choose, our company promises you best quality with an economical cost.
Features of our 1 ton winches
There are four types of our 1 ton winches. Here are the main features and basic function of each types of winches. Try one to help you get yourself from busy manual labor.
- AQ-JM slow speed winch.If you want to carry loads both in land and ships. AQ-JM 1 ton winch is your best choice. AQ-JM 1 ton winch can be used in land to lift, pull and drag heavy loads about 1 ton. Besides, if necessary, you can use it in boats or coast. It can play a role of marine winch to anchor and moor. Then, if you want to use a 1 ton winch related to mine, why not choose our 1 ton mine winch.
- Mine winch. 1 ton mine winch of our group can be placed inside or outside your mine. It helps to carry and transport your metal materials including coal, zinc, copper and iron. You will get a professional customization of 1 ton mine winch according to the condition of your metal mine.

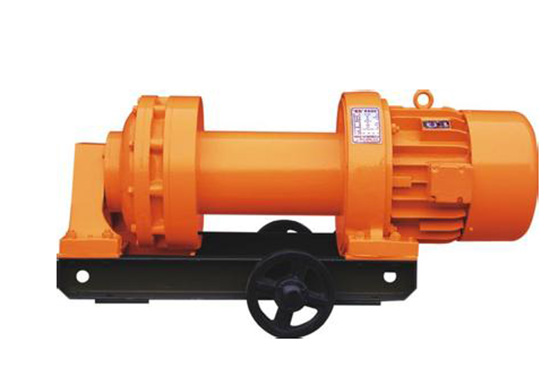

- AQ-JKD winch. if you want a small size winch to place in shop, garage or other limited space occasions, AQ-JKD winch will be your best choice. Unlike other types of 1 ton winch, AQ-JKD type 1 ton winch adopts planetary transmission, and it has driven motor and winch rope on the same axis. You can save your space if you choose AQ-JKD 1 ton winch.
- AQ-JK fast speed winch. if you want to match your winch with derrick, portable frame and crane, you can choose JK type 1 ton winch. Because except pulling and lifting loads, AQ-JK series 1 ton winch can be use as main hoist in derrick and portable frame. Choice AQ-JK series 1 ton winch, you will get two types of task done.
AQ-JM 1 Ton Winch
Loading capacity: 1 t;
Wire rope capacity: 20~3600 m;
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JK 1 Ton Winch
Loading capacity:1 t;
Wire rope capacity: 20~500 m;
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply:
220-690V,50/60HZ,3Phase;
AQ-JKD 1 Ton Winch
Loading capacity: 1 t;
Wire rope capacity: 20~200 m;
Working speed: 20~35 m/min;
Power supply:
220-690V,50/60HZ,3Phase;
Advantage of Our Winch Mchine
- Smooth finish
- Superior performance
- Durability
- Rugged construction
- Highly durable
- Rust resistance
Why Choose Our Group?
Our group is professional in making 1 ton winch, we provide you 1 ton winch of multiple function. You will get at least two types of task done if you choose our group as your supplier. Besides, we give you best quality 1 ton winch with cheapest price. Interested in our 1 ton winch? Why not click free inquiry to get yourself one.
| Technical Parameter of AQ-JM Series 1 Ton Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameter of AQ-JK series 1 Ton Winch | ||||||||
| Model | Rated load |
Rated speed |
Rope capacity |
Rope diameter |
Motor type |
Motor power |
Overall Dimensions |
Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKD Series 1 Ton Winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JKD1.60 | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JKD2.0 | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
Welcome to get your free inquiry. We will reply to you in 12 hours!
